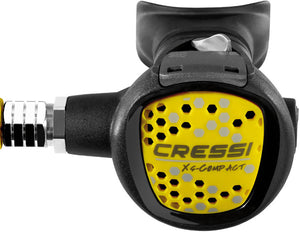

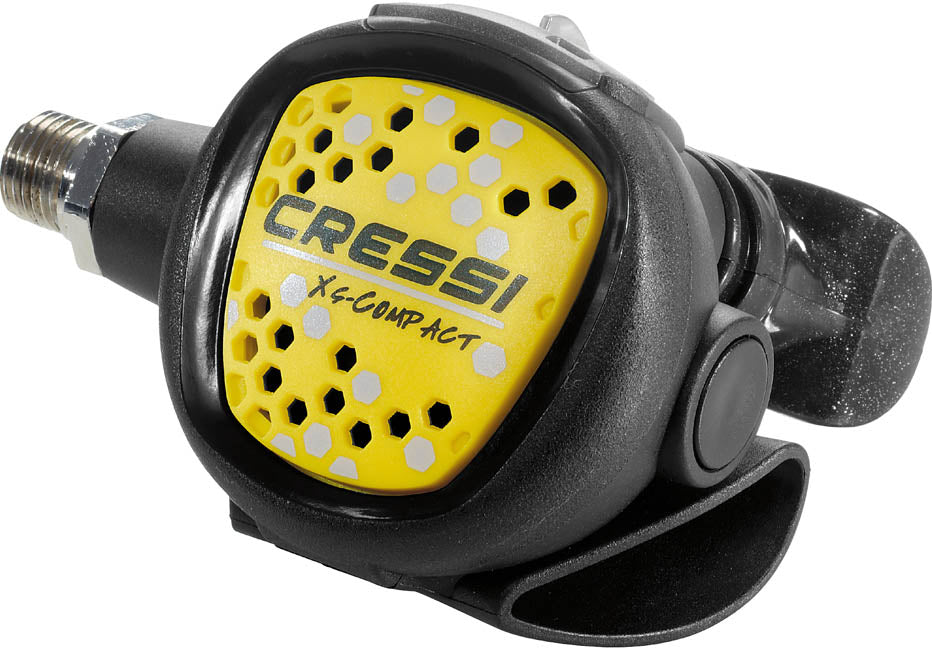

OCTOPUS COMPACT
2nd STAGE XS COMPACT:
New ultra simplified monocoque second stage in ABS + elastomer, quite small (6 cm in diameter), very light (153 g) and robust, designed and built to have a minimum number of components.
It is a smart buy due to its combination of performance, reliability, price and cost of maintenance. It is perfect for uses requiring maximum reliability and as a travel regulator, given its lightness.
CE Standardization Annex B EN250/2014_A>10°C
The specific calibration of the inhalation mechanism slightly changes the air delivery as compared to the Ellipse series; the feel and sensitivity of these models is exquisite, with an abundant flow without needing to exploit the Venturi effect.
This feature adds a scant tendency to freeflow on the surface and when positioning the equipment in the water, ideal for schools and rentals, octopus and double regulator.
Nevertheless, the performance results put it at the top of the highest range of regulators.
Asymmetrical perforation in the front cap.
The flow of the water starts to push the diaphragm counter-clockwise so that its retraction is perfectly flat and the cam progressively descends perpendicularly, independent of conditions (currents, brisk movements, facial position, etc.).
Exhalation effort particularly reduced without having to reduce the thickness of the diaphragm.
The design of the membrane retention system directs the 100% channeled flow towards the nozzles of the bow, taking advantage of a strong Venturi effect.
Also, it works to direct the bubbles away from the diver’s field of vision.
Embedded membrane to avoid water infiltration in case of brisk turns or jumps to enter the water.
Practically integrated purge button, between 80-400% larger than that of any other regulator on the market to facilitate purging, especially for beginning divers.
Cap system assembly by a 30º bayonet turn, assuring a very safe and simple assembly-disassembly, even while cleaning out sand on the beach, without the need of tools.
Reduced ageing due to usage thanks to the casing finish, achieved by applying a new technology in the mold that creates a variegated look on a micro-texture of rounded profiles.
